Neo65 DIY Keyboard Kit Pre-order
Pre-orders run until the 17th of September 2023
ETA Late October-Early November 2023
Does not include keycaps or switches. Images are for representational purposes only.
Our design code is based on minimalism. The Neo 65 features an ultra-slim side bezel that blends seamlessly with any desk setup, regardless of the theme.
Neat Side Profile
We chose an inward-sloping edge to complement the minimal design on the front. This also makes it easier to pick up the keyboard.
Brass Weight with Orbit Engraved Logo
The name Neo not only refers to the designer but also represents Near Earth Objects.
We opted for the orbit as the logo for the Neo series to symbolize the interconnection and alternation of our products.
Support both PCB gasket mount and gummy O-ring mount (not compatible with plateless configurations)
With our specially designed gaskets, the PCB and plate can be securely held in place, even if the case is flipped upside down
Finely-tuned sound profile – no hollowness nor case ping without the use of any foam
Reserved groove for the O-ring at the blocker – no need to forcefully bend the O-ring anymore, so the assembly experience can be more efficient and enjoyable
O-rings with different stiffness levels are available to provide varying typing feedback
- We selected the 1.6mm PCB without flex cut to achieve a louder and fuller sound profile
- All PCBs are QMK-based, VIA supported
- Two PCB options:
- Solder – Support both ANSI and ISO layout
- Hotswap – ANSI layout only
Plates with distinctive characters
Hard ———————————————> Soft:

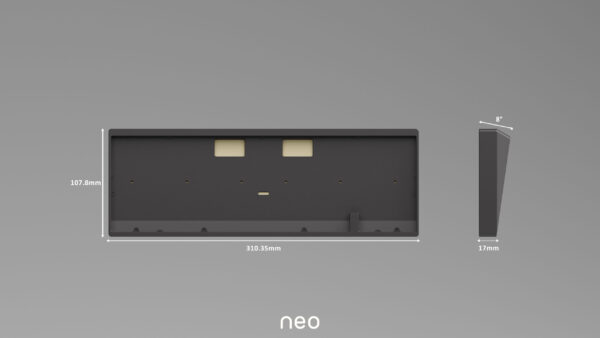

8 degree typing angle
17mm front height
310.35mm * 107.8mm
- Case – including pre-installed external weight and fillers
- Plate of your choice (or plateless)
- Poron Case Foam
- Daughterboard – Installed
- Silicone Gaskets
- O-ring (50A)
- Rubber feet in grey and black
- Daughterboard FPC cable
- Free Gifts (Not covered by warranty): Keyboard carrying case, 1x hex and 1x philips screwdriver, 1x Keycap and switch puller, 1 set of PCB clip-in NeoStab
- Coiled USB-C Cable
Please refer to the QK Acceptable Quality Standard.
White, MilkyWhite, Yellow, Silver, Purple, Green, Red, Navy, Black
Brass, Copper, M-Golden, M-Dusk, M-Chroma
Plateless, PC, POM, FR4, Aluminium, Carbon Fiber
