Model M SSK DIY Keyboard Kit

Description

Model M SSK

Classic keyboard in the Model M SSK! The design is inspired from the revered vintage Model M SSK keyboards, and is thoroughly modernized with a CNC’ed and anodized aluminium case and 21st century features, such as hotswap PCB, QMK/Via support, gasket mount support structure, RGB backlighting, and more!

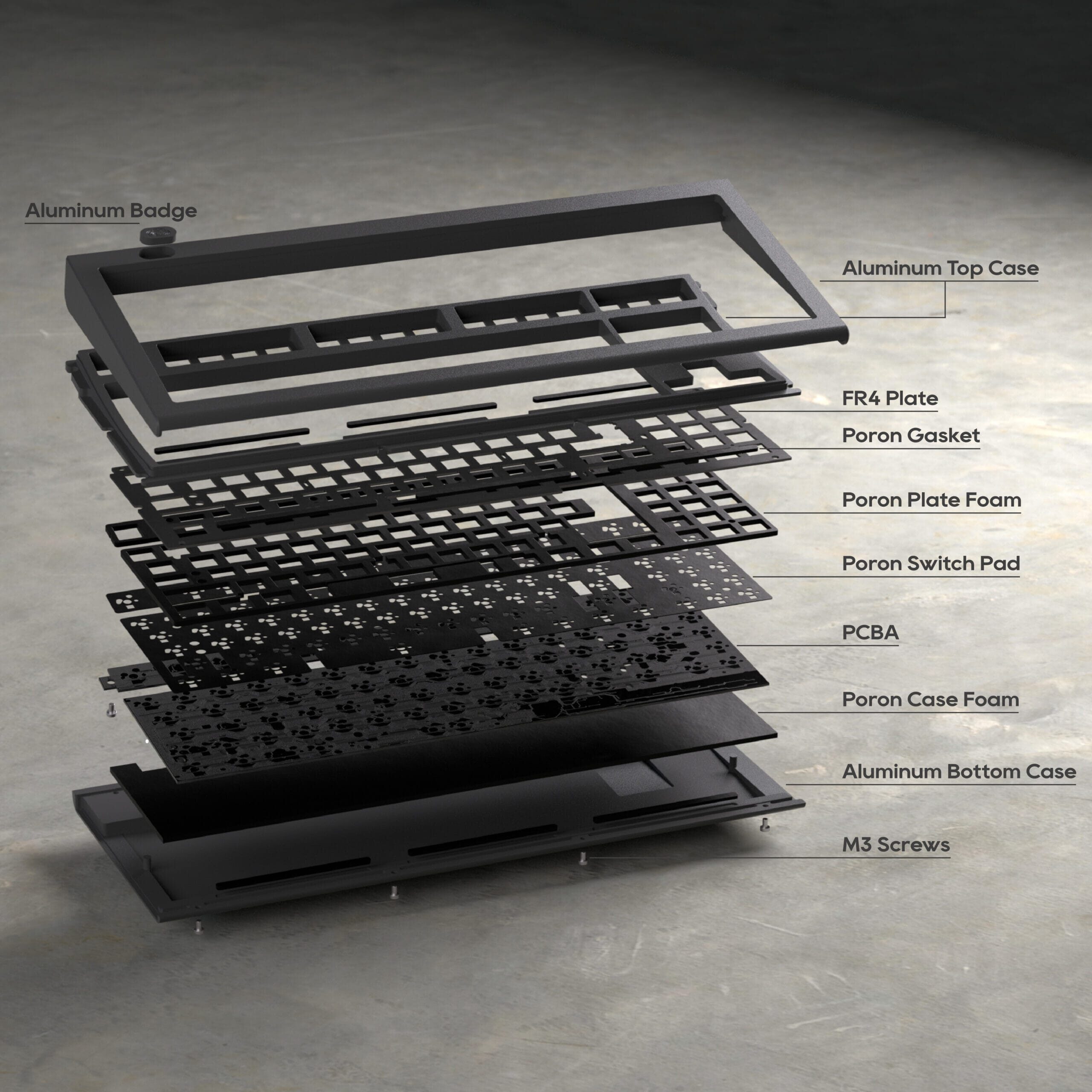

The kit includes:

• Aluminum Badge x2 (Logo And “VTK”)
  • Additional badge-“VTK” is only included in Group Buy orders.
• Top And Bottom Case x1
• FR-4 mounting Plate x1
• Hot-swap PCB x1
  • WK version comes with 6.25U spacebar support and WKL version with 7U spacebar support
• USB Daughter Board x1
• Plate Foam:3mm x2 (Main PCB And F-row)
• Poron switch Pad:0.5mm x2 (Main PCB And F-row)
• Bottom Case Sound-dampening Foam:3mm x1
• (Main PCB) Gasket Set x1
• M3 Screw Set x1
• Rubber Feet set x1
• Carrying Case x1

You will need to purchase the following items separately:

• Stabilizers
• Keycaps
• Cables
• Switches

Specifications:

• Wired
• ANSI / ISO Layout
• WK / WKL
• CNC-machined aluminium case

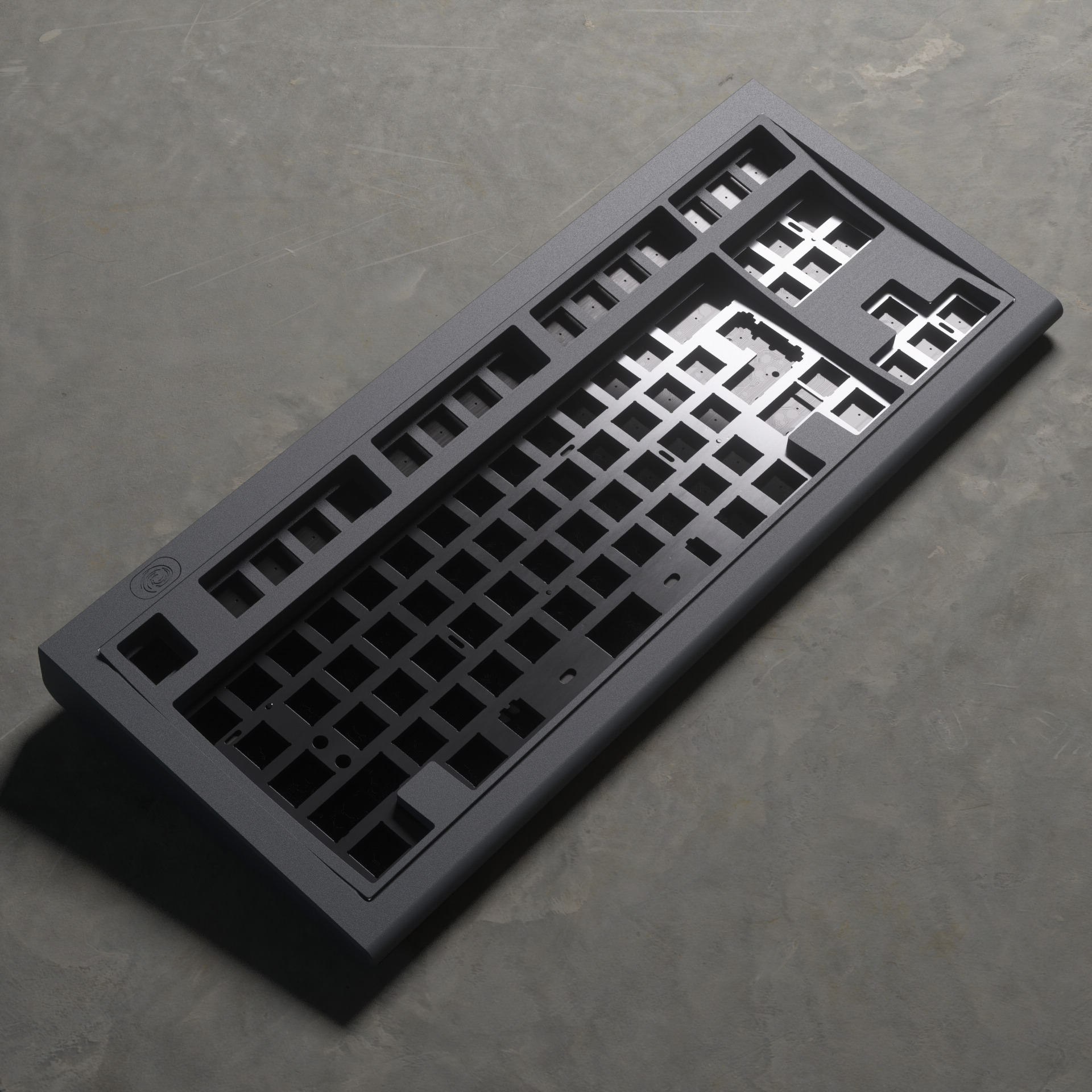

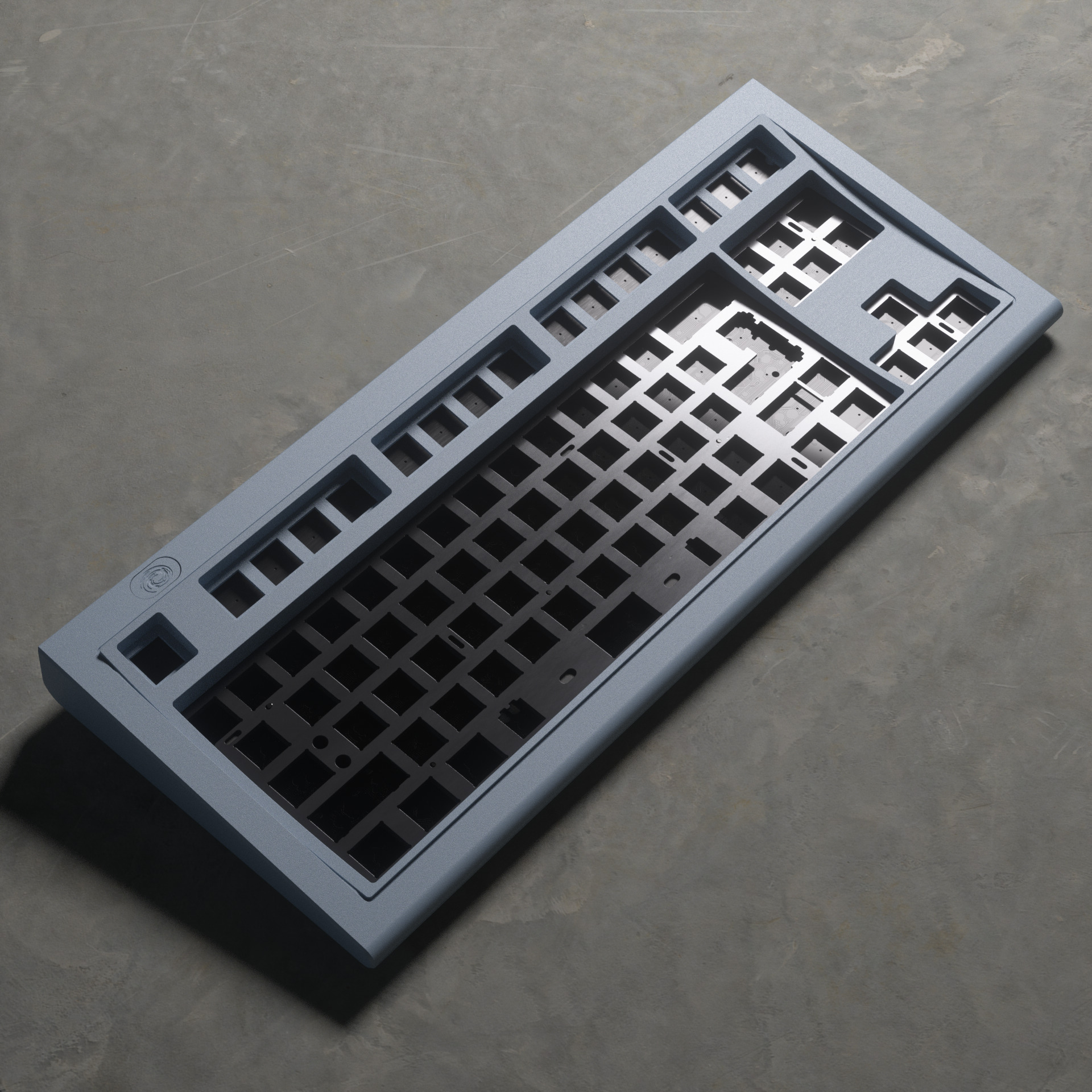

• Case Color: Anodized Black, Space Grey, Silver, Blue
• Programmable via QMK/VIA/Vial
• N-Key Rollover
• Gasket Mount Structure
• Compatible With MX Switches And Clones (3-pin&5-pin)
• South-facing Switches And LEDs
• Fully Customizable RGB Using VIA/Vial Software
• 1.6 mm Thickness PCB
• PCB Mount Stabilizers (Not included)
• USB Type-C Connectivity
• Aluminum Badges
• Solderable PCB supports stepped Caps lock and Tsangan layout
• Product Dimensions (cms):
  • L*W*H (bottom row) : 39.0*16.5*1.2 cm ± 0.3
  • L*W*H (top row): 39.0*16.5*3.0 cm ± 0.3
• CNC Case Weight: 1453(g) ± 10
• Typing Angle: 6°
