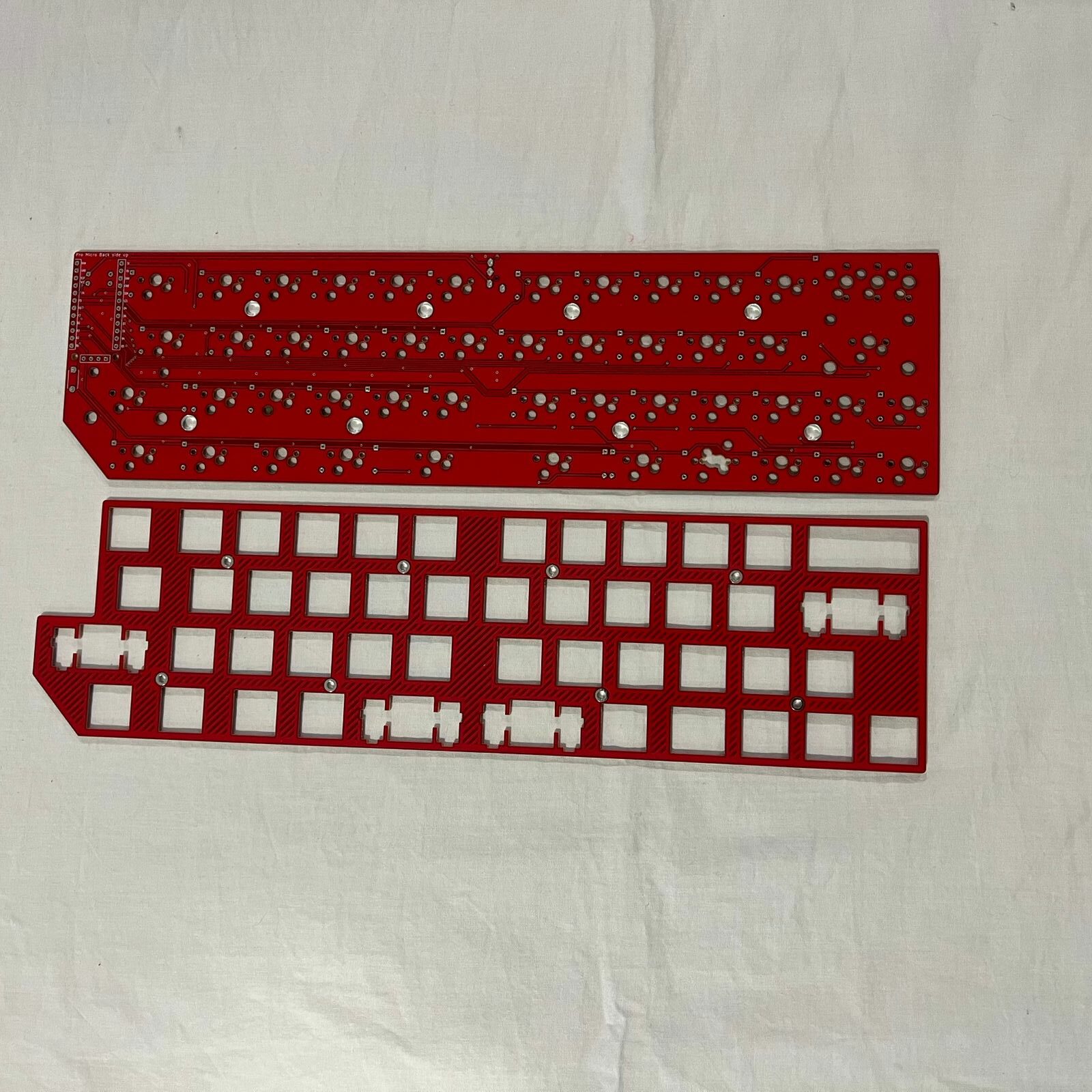

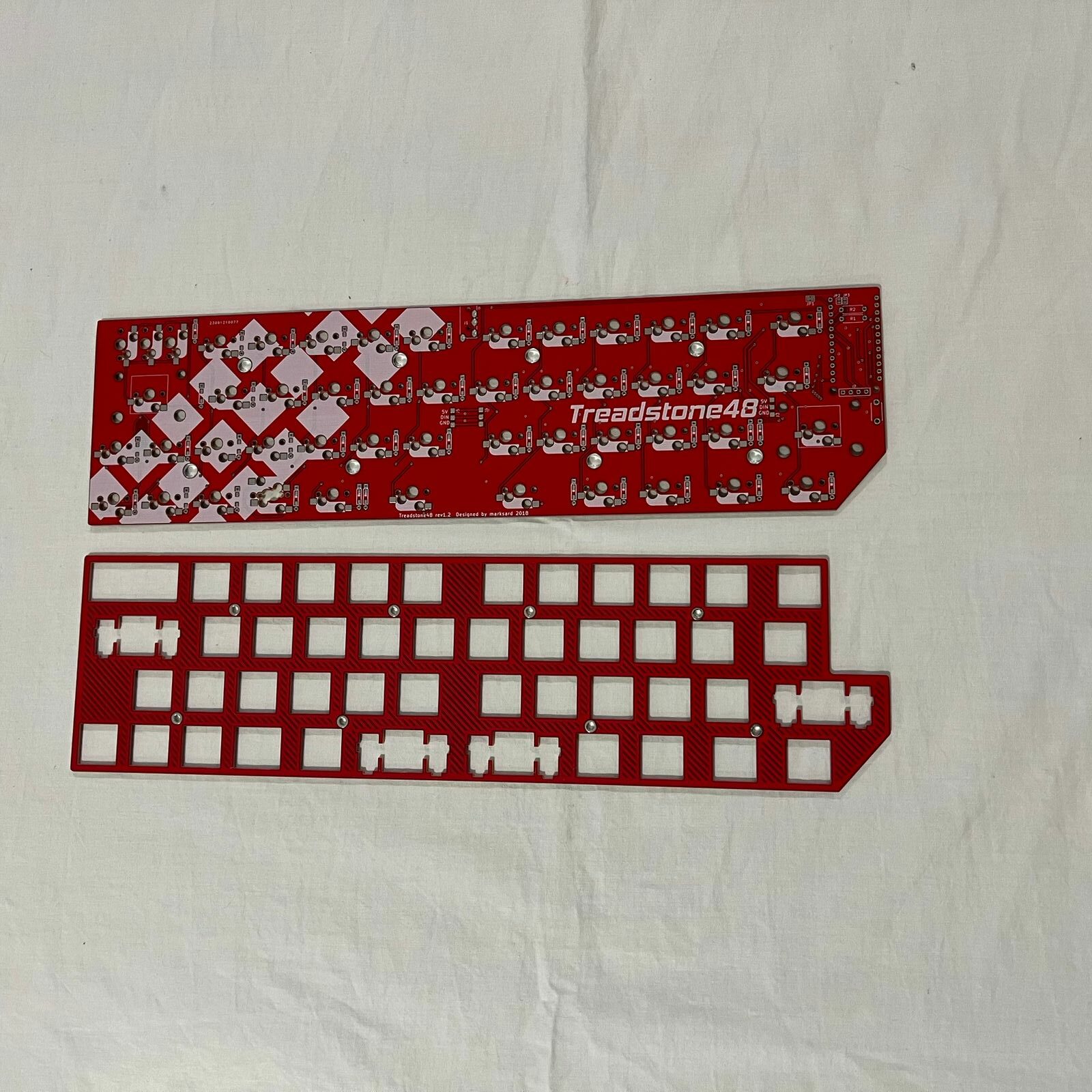

Treadstone48 PCB + FR4 Plate

1,200.00 (Inc. GST)

The PCB and FR4 Plate for the Treadstone48 by Marksard. A symmetric staggered 40% keyboard that uses standard ANSI keycaps.

Out of stock

SKU: TS48-PCB-PLT Category: Tag:

Description

The PCB and FR4 Plate for the Treadstone48 by Marksard. A symmetric staggered 40% keyboard that uses standard ANSI keycaps.

Build guide.

You will need the following parts to complete the build

Acrylic Bottom Plate1
Acrylic Pro Micro Cover1
M2 spacer 8mm2use with Acrylic Pro Micro Cover
M2 spacer 7mm8use with Acrylic Bottom Plate
Plastic spacer 2mm8use with Acrylic Bottom Plate
M2 Screw 5mm18
M2 Black Screw 4mm2Top use with Acrylic Pro Micro Cover
Rubber Feet8
1N4148 diode48
TRRS Jack1Only used while linking to Rhymestone
Reset Switch16mm*3.5mm, 2-pin
MicroUSB cable1
Key Switches47~48Compatible for MX
Key Caps47~48compatible for MX stem
Pro Micro1
Pin 12P2For use with Pro micro
Hotswap Sockets47~48
Stabilizer1~4Plate Mount
LED strip(WS2812B x6)2Underglow

Additional information

Weight0.100 kg
