Model M SSK PCB Add-Ons Group Buy
Images are of PCB prototypes and shown for representation only. Final version may differ from this picture.
This is a Group Buy, and our Pre-Order and Group Buy Policy applies to all purchases.
- Group Buy Period: November 17 2022 to January 4 2023
- Dispatch to vendors: Late March 2023
Description
Model M SSK PCB Add-Ons
The Model M SSK DIY keyboard kit ships with a hotswap PCB by default. You can purchase additional PCBs in this page.
Each PCB is a set of:
- Main PCB
- F-row PCB
Options
- Hotswap:
- ANSI, WK layout (6.25U spacebar)
- ANSI, WKL layout (7U spacebar)
- ISO, WK layout (6.25U spacebar)
- ISO, WKL layout (7U spacebar)
- Soldered, multi-layout (also supports stepped Caps Lock and Tsangan)
Compatibility
- Plates: All PCBs are compatible with all Model M SSK Plates
- Cases:
- WK PCBs cannot be used with the WKL Cases
- WKL PCBs are compatible with all Cases
PCB Layouts

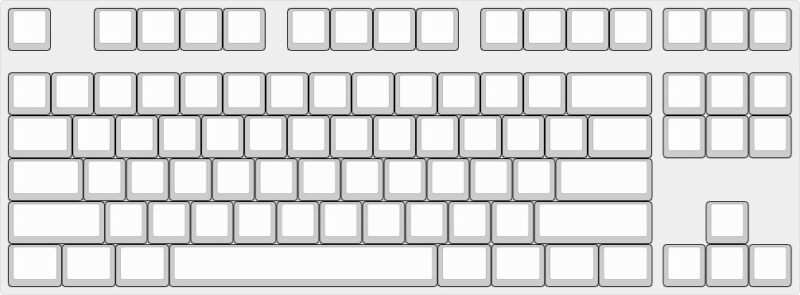

ANSI PCB 6.25U Hotswap Layout

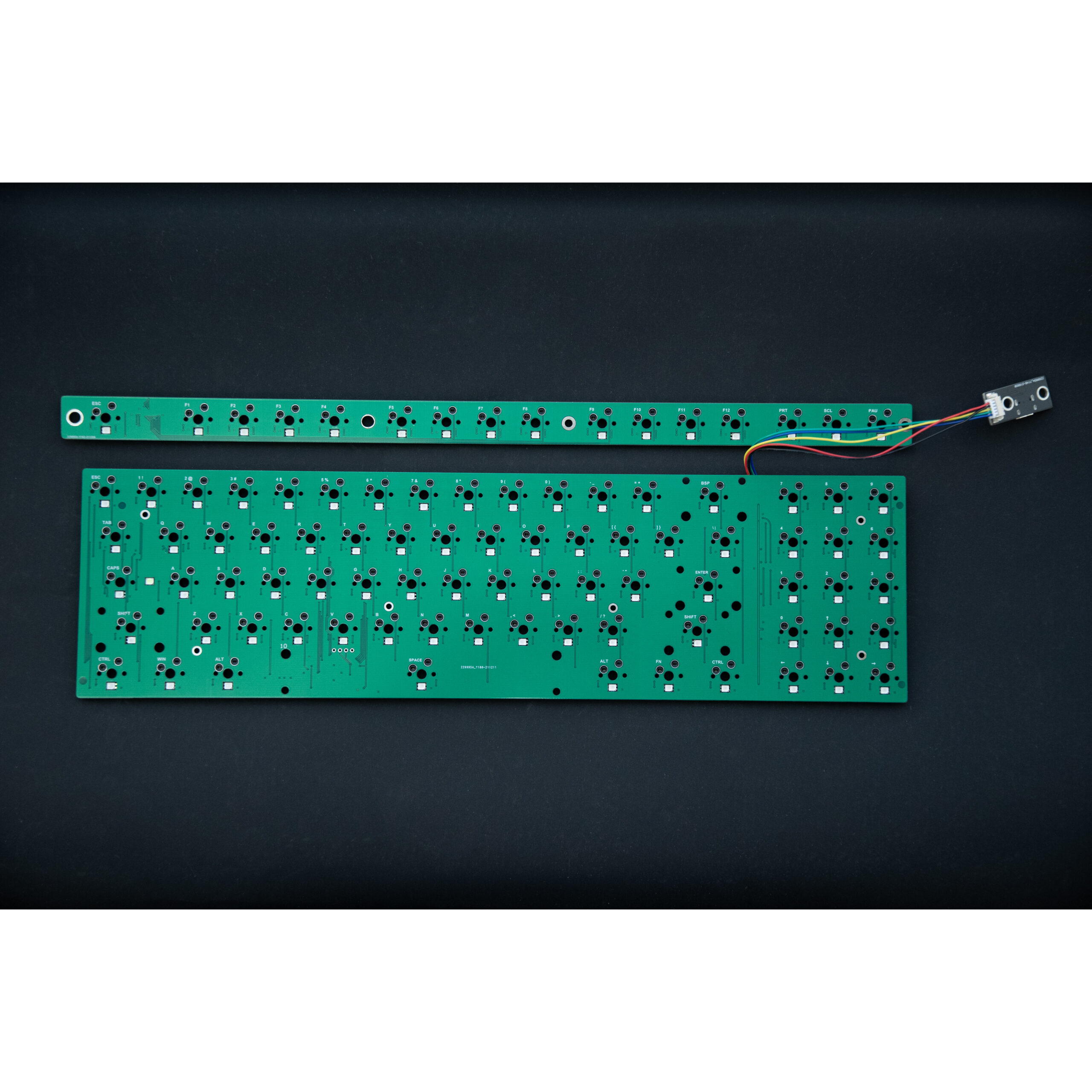

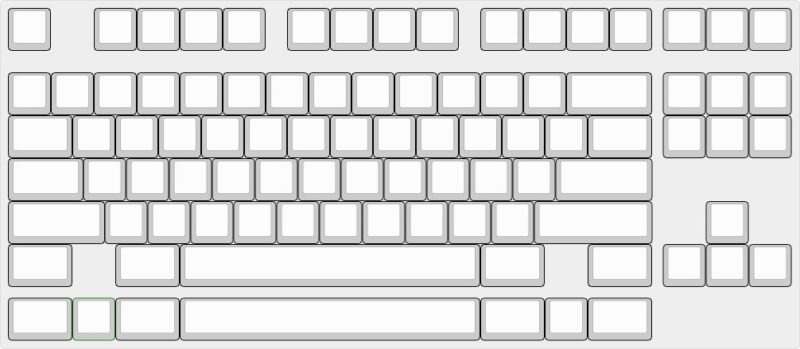

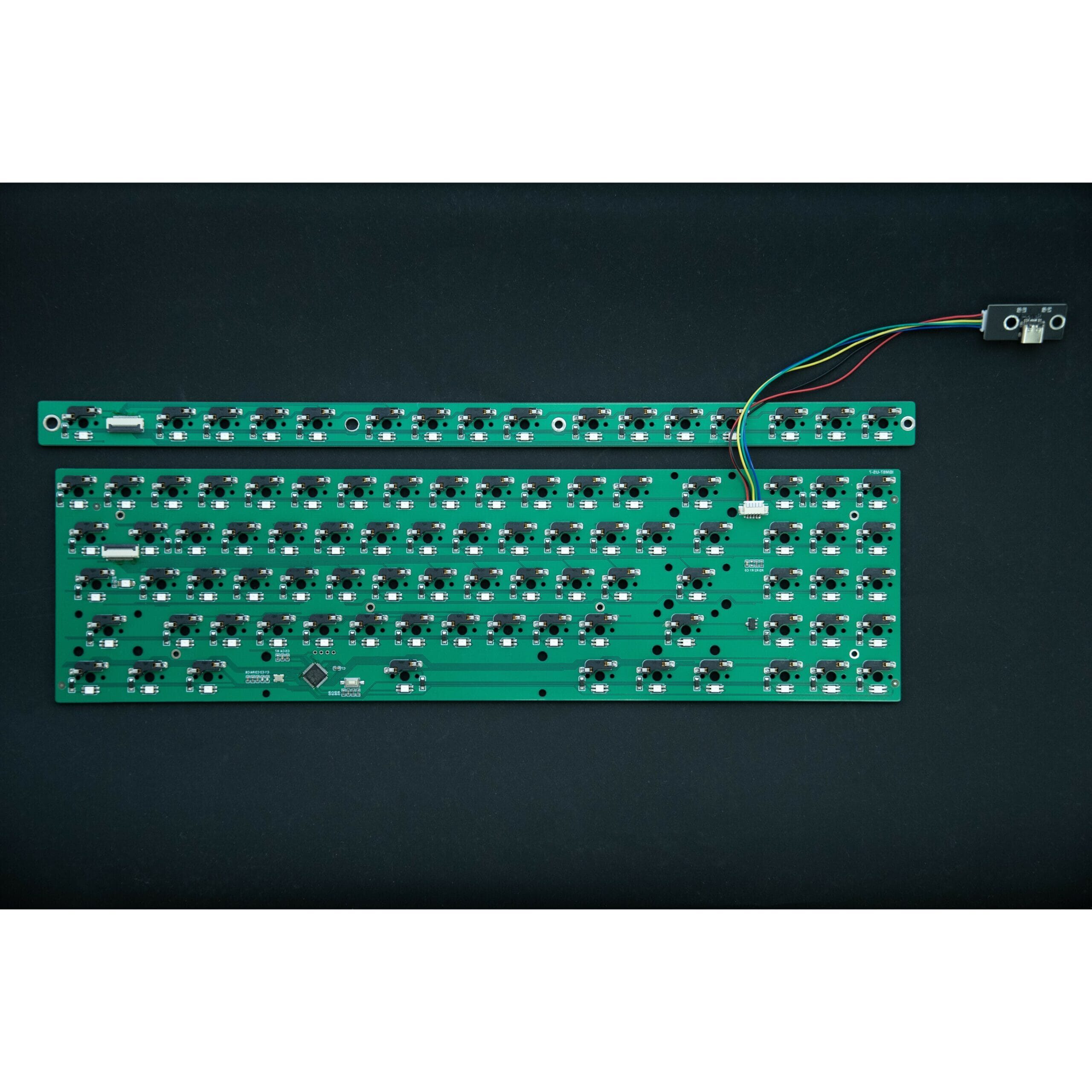

ANSI 7U Hotswap Layout

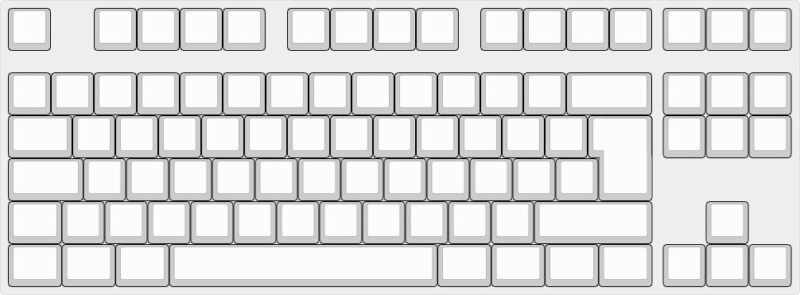

ISO PCB 6.25U Hotswap Layout

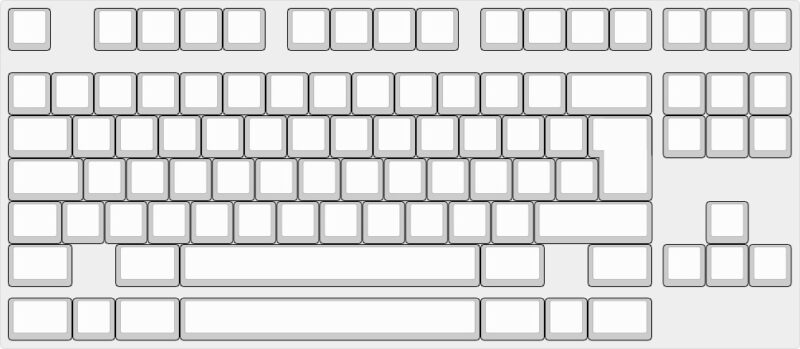

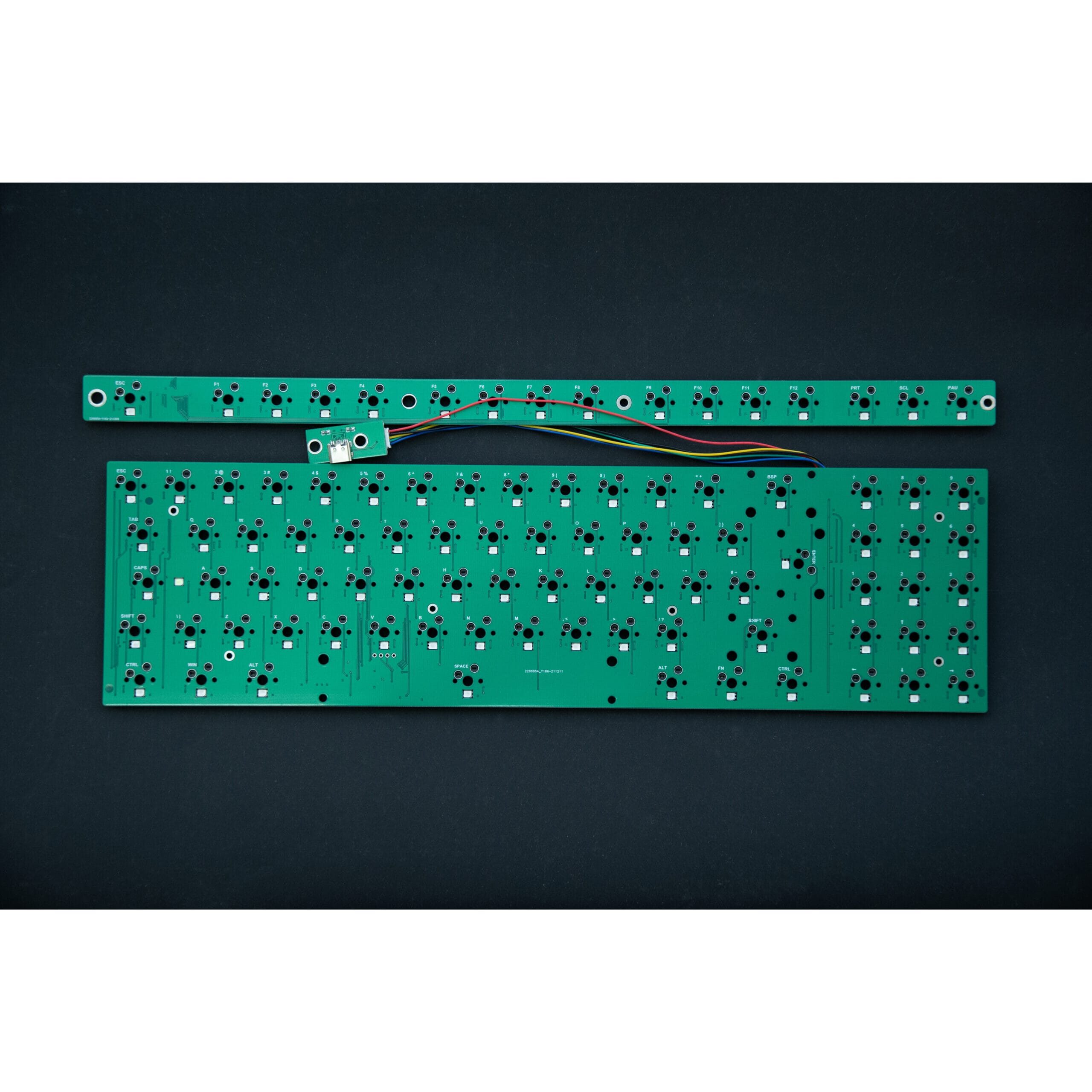

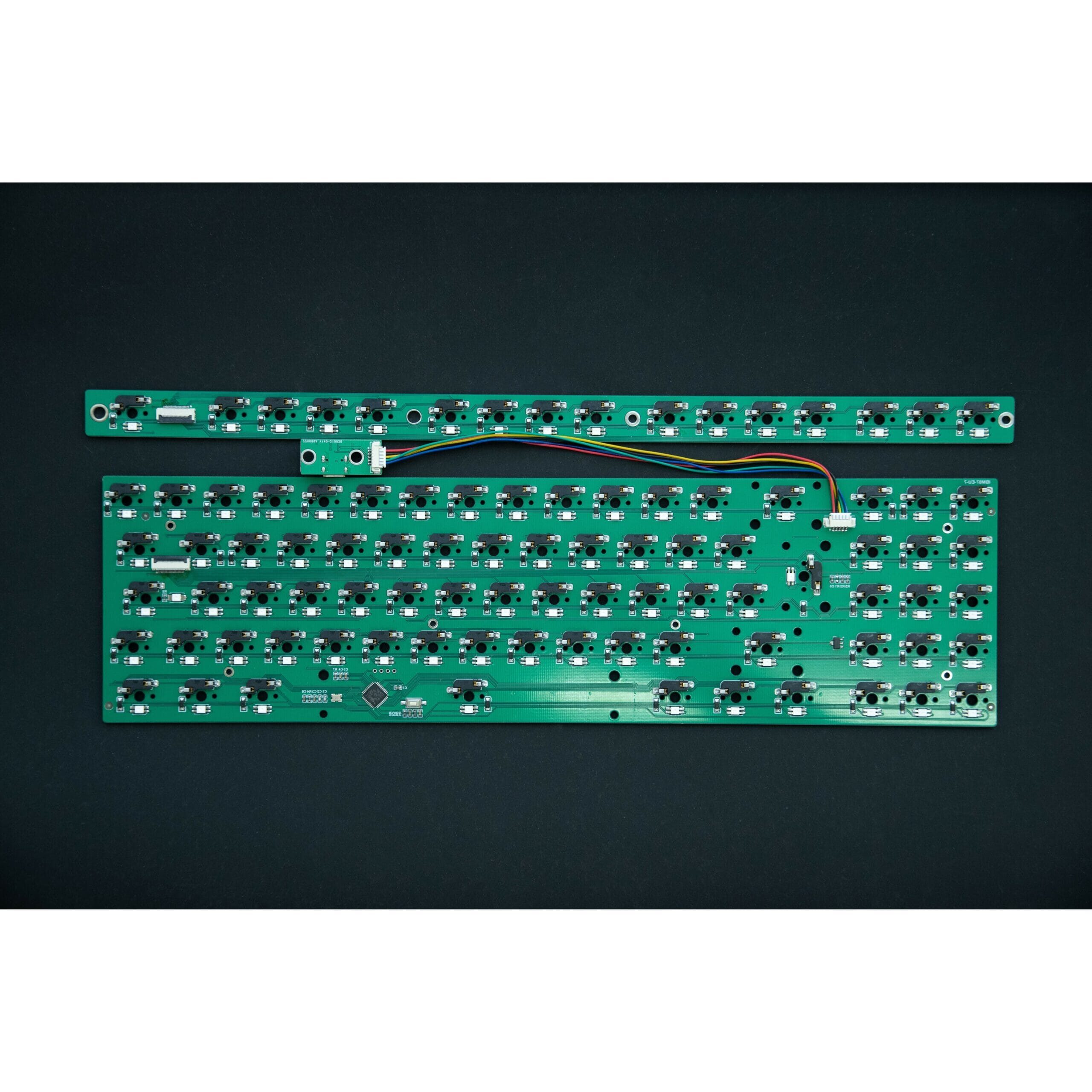

ISO PCB 7U Hotswap Layout

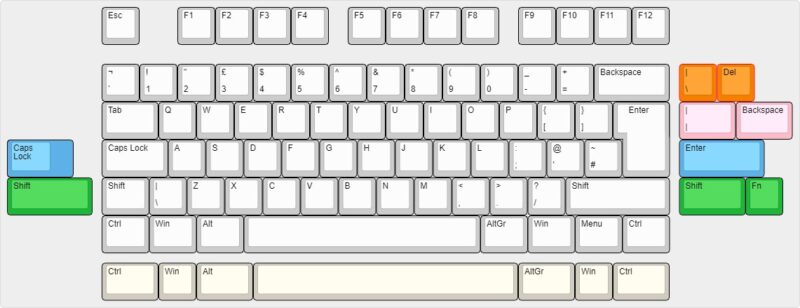

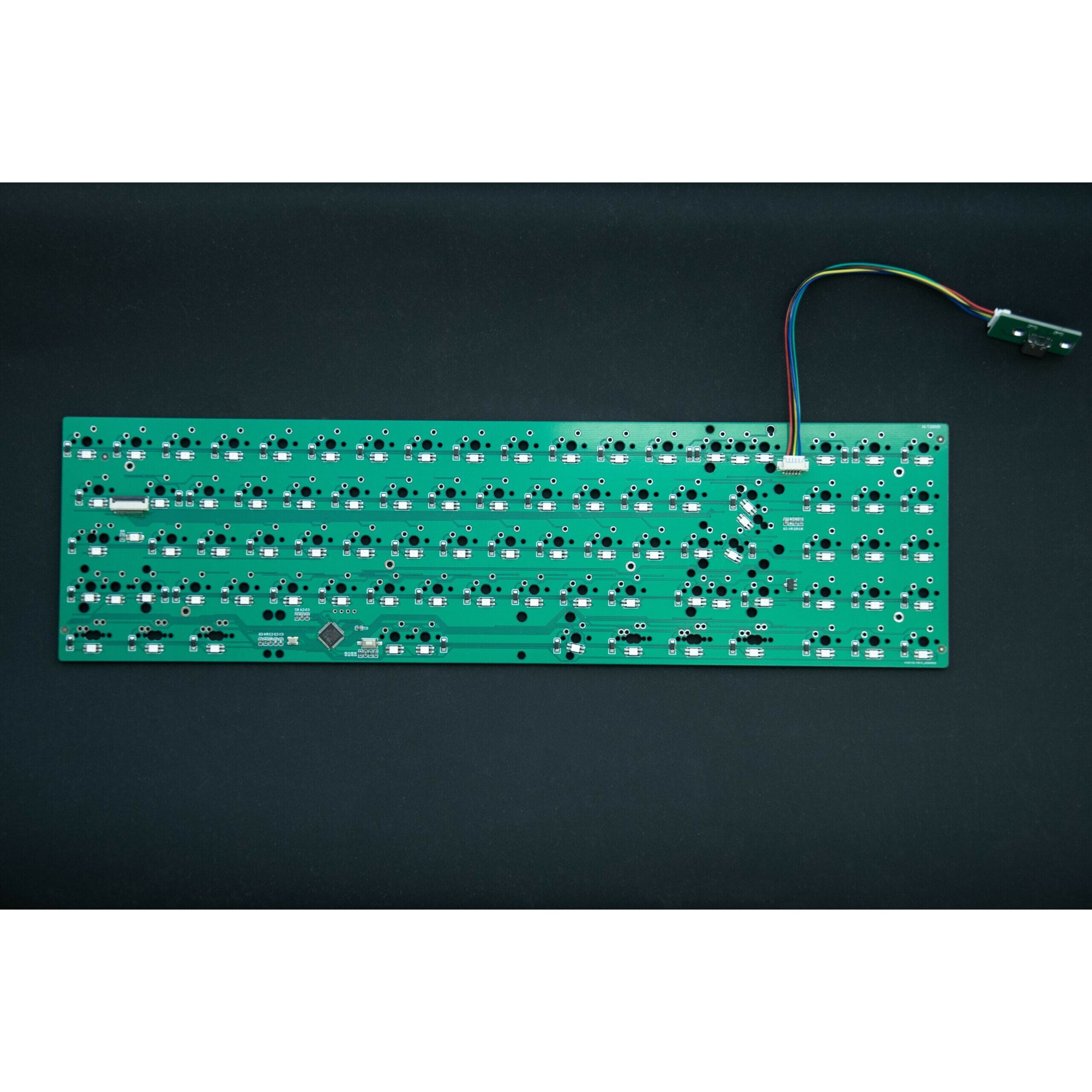

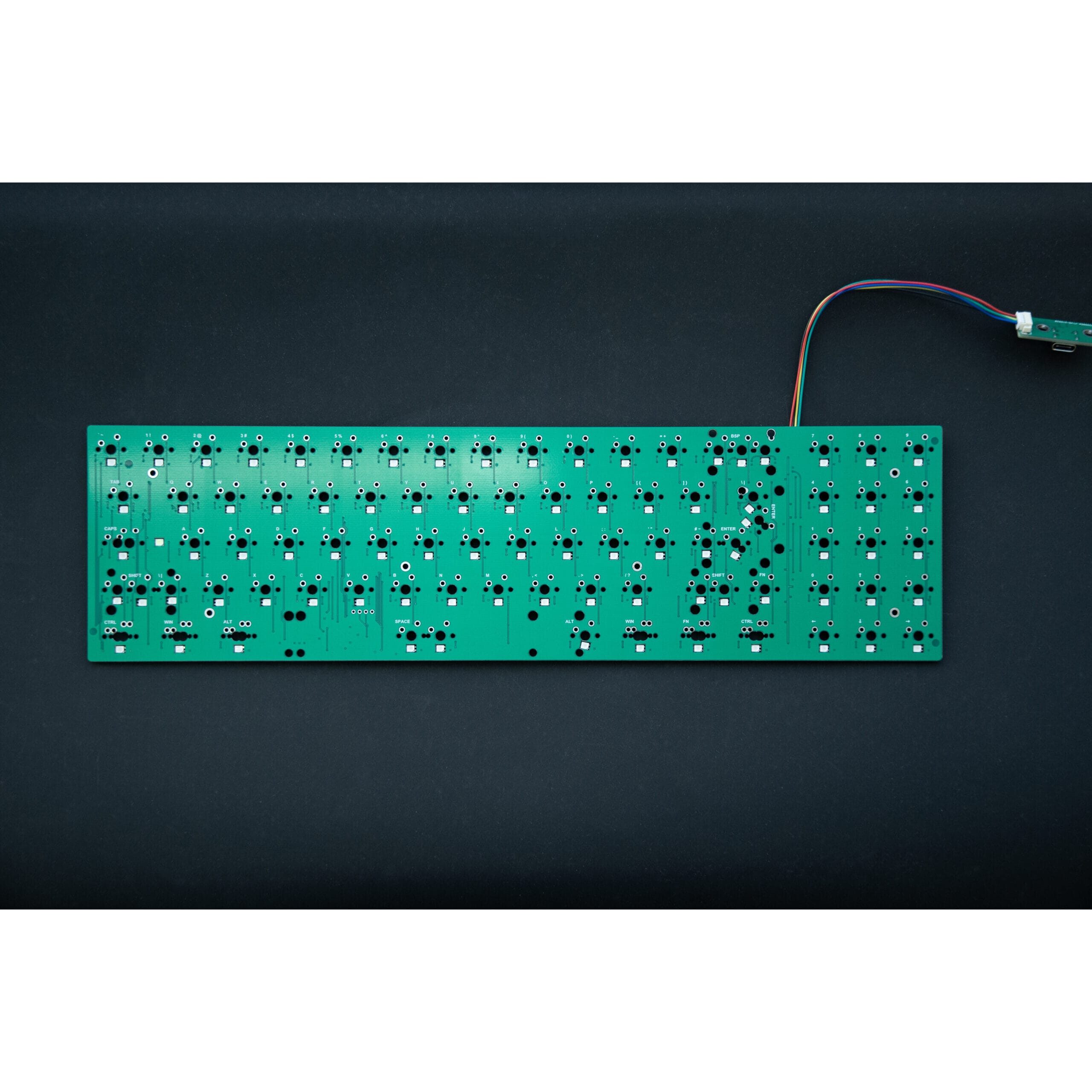

Multi-Layout PCB Soldered Layout
Additional information
Manufacturer | |
---|---|
Variant | Soldered (multi-layout), ANSI WK, ANSI WKL, ISO WK, ISO WKL |
