Hotswap conversion pin receptacles (0.64mm-1mm)

Hotswap conversion pin receptacles (0.64mm-1mm)

₹10.00 (Inc. GST)

Sold individually (1 unit = 1 piece). You two sockets needed for every single switch. Manufactured in China.

In stock

Categories: , ,

Description

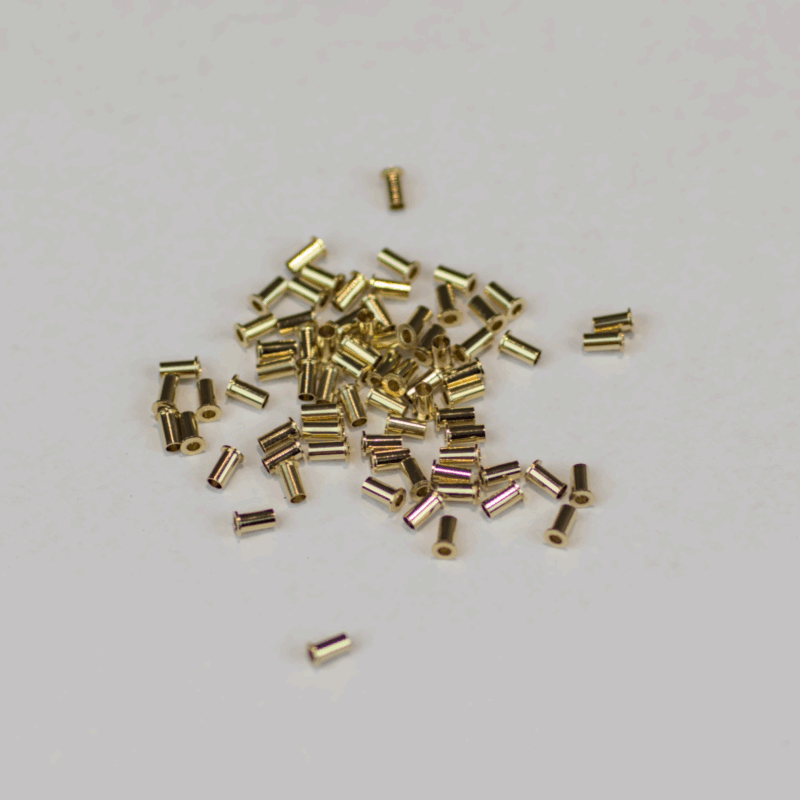

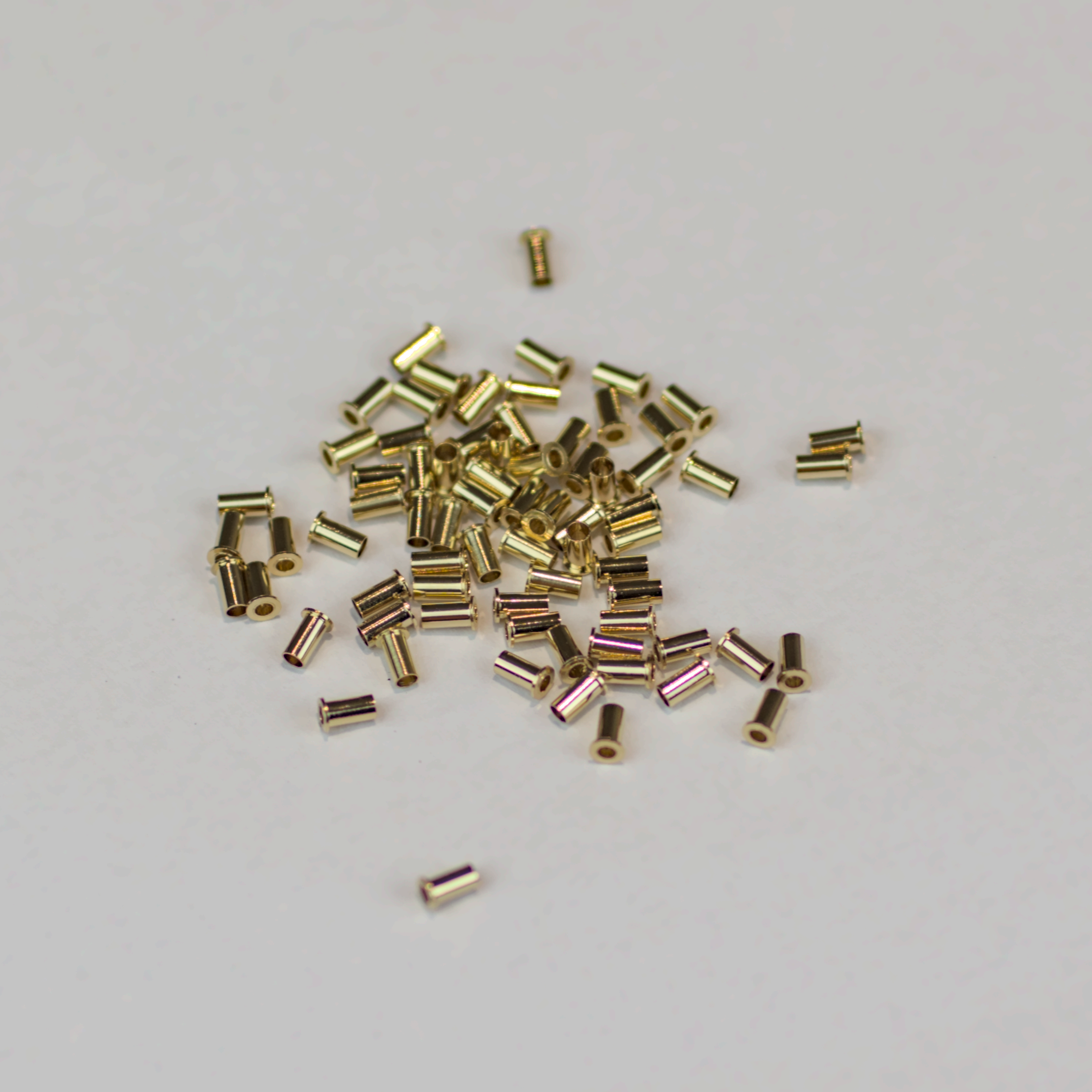

Pin Receptacle Hotswap Socket

Converts standard Cherry MX footprints to hotswappable connections

Hotswap Conversion

Converts existing soldered PCB designs to hotswap. Fits in standard Cherry MX specification through holes

Pin Range

Accepts switch pins from 0.64mm to 1.0mm diameter. Compatible with most Cherry MX style switches and variants.

Contact Design

Six-pin beryllium copper alloy springs provide secure electrical contact and mechanical retention.

Material Specifications

Component Material Finish
Body Brass Gold
Contact Springs Beryllium Copper Gold
Aspect Dimensions
Pin Acceptance 0.64mm – 1.0mm diameter range
Lip Outer diameter 2.0mm
Lip height 0.20mm
Socket height 3mm
Body width 1.45mm

Our Advantage

Thinner lip profile compared to Mill-max 0305 allows for switches to sit closer to the PCB. Longer body length versus 7305 provides for easier installation.
