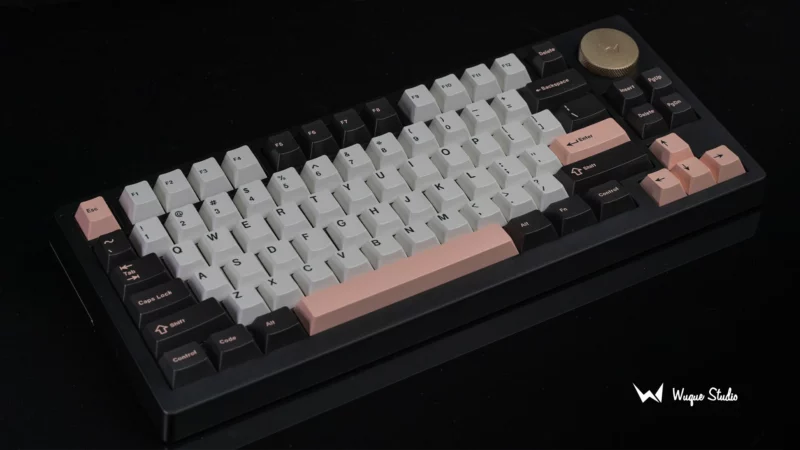

Wuque Studio Mammoth75 Pre-Order [Limited Stock]

43,500.00 (Inc. GST)

Our Pre-Order and Group Buy Policy applies to all purchases

Strictly limited to one unit per customer. Orders for more than one unit, or multiple orders to circumvent the limit will lead to the extra units being cancelled and cancellation fees applied.

1.2mm WS Aurora Stabilizers are bundled with the kit to provide a hassle-free build experience.

Highlights

  • Full Mirror Bottom Case
  • Sandblasted Diamond Cut Mammoth Weight

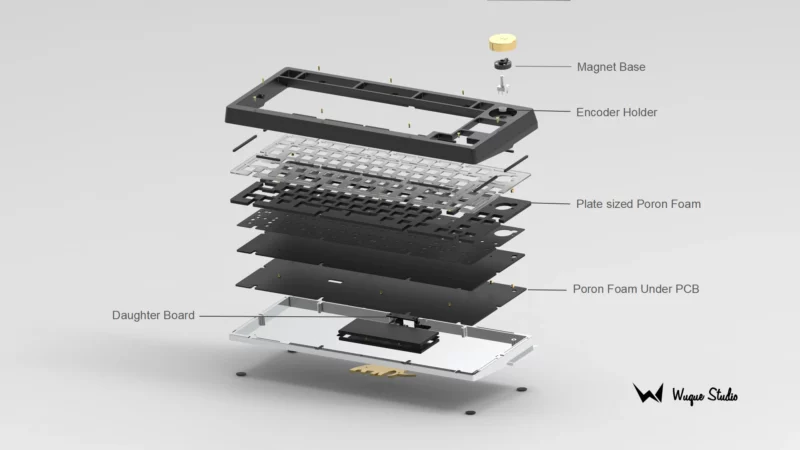

  • Special Gasket Structure with Daughter board

We make the plate poron foam the same size as the plate, and it will touch the entire bottom case to achieve a stable typing feel. We also use adhesive poron under PCB for a pleasant deeper sound.

  • Two Magnet Knobs

We use a magnet base to make knob even more friendly “hotswap”. The kit comes with 2 knobs for your choice: One Aluminium knurled knob, one brass CD pattern knob.



Clear
SKU: KT-M75-IS Category:

Description

Brief info

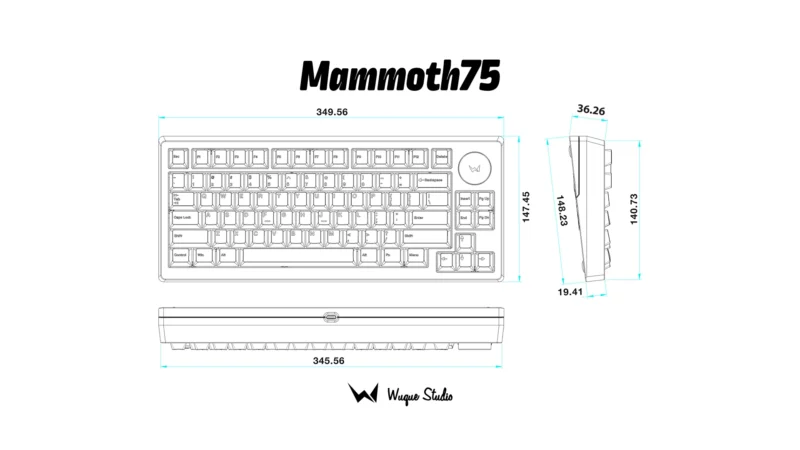

  • Typing angle: 6.5 degrees.
  • Front Height: 19.41mm
  • Kit Weight (unbuilt): 2 kg
  • Case Material: Aluminum
  • Mounting Method: Gasket Mount
  • Package weight 3.5 kg

PCB Specifications:

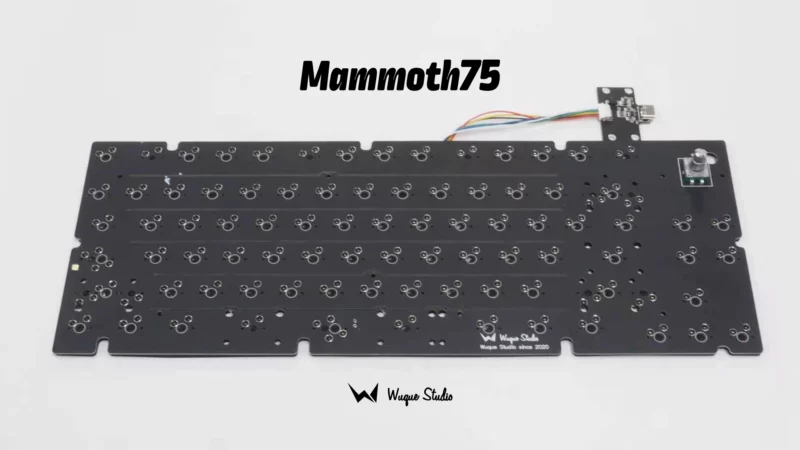

  • Wired Hot-swap PCB: 1.2mm thick, flex cuts.
  • Multi layout: supports split space bars, Left/Right shift split, backspace split, step caps lock
  • QMK / VIA support: Yes.
  • In-switch LEDs: No
  • Underglow: No
  • ESD Protection: Yes.

Kit Contents:

  • Top Case (Aluminum)
  • Bottom Case (PVD Aluminum)

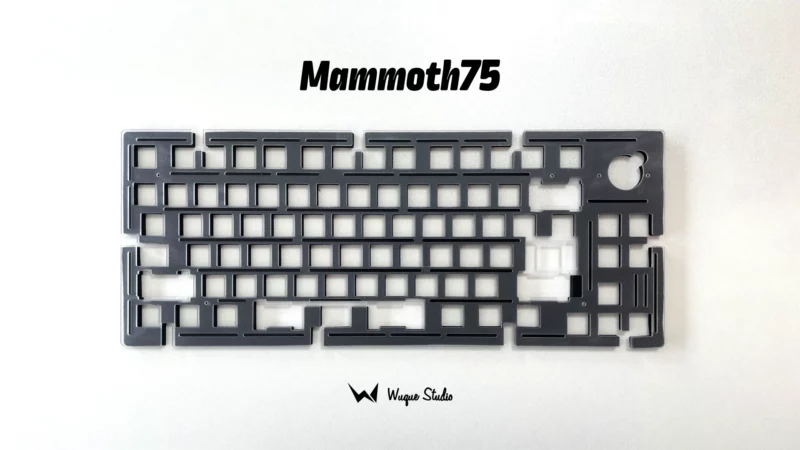

  • PC Plate
  • Hotswap PCB and daughter board
  • PORON gaskets
  • PORON dampener between plate and PCB
  • PORON foam between PCB and switches
  • PORON foam under PCB
  • Alu and brass knobs
  • Magnet base
  • Encoder holder
  • Screws and rubber feet
  • WS Aurora 1.2mm stabs are bundled with the kit
